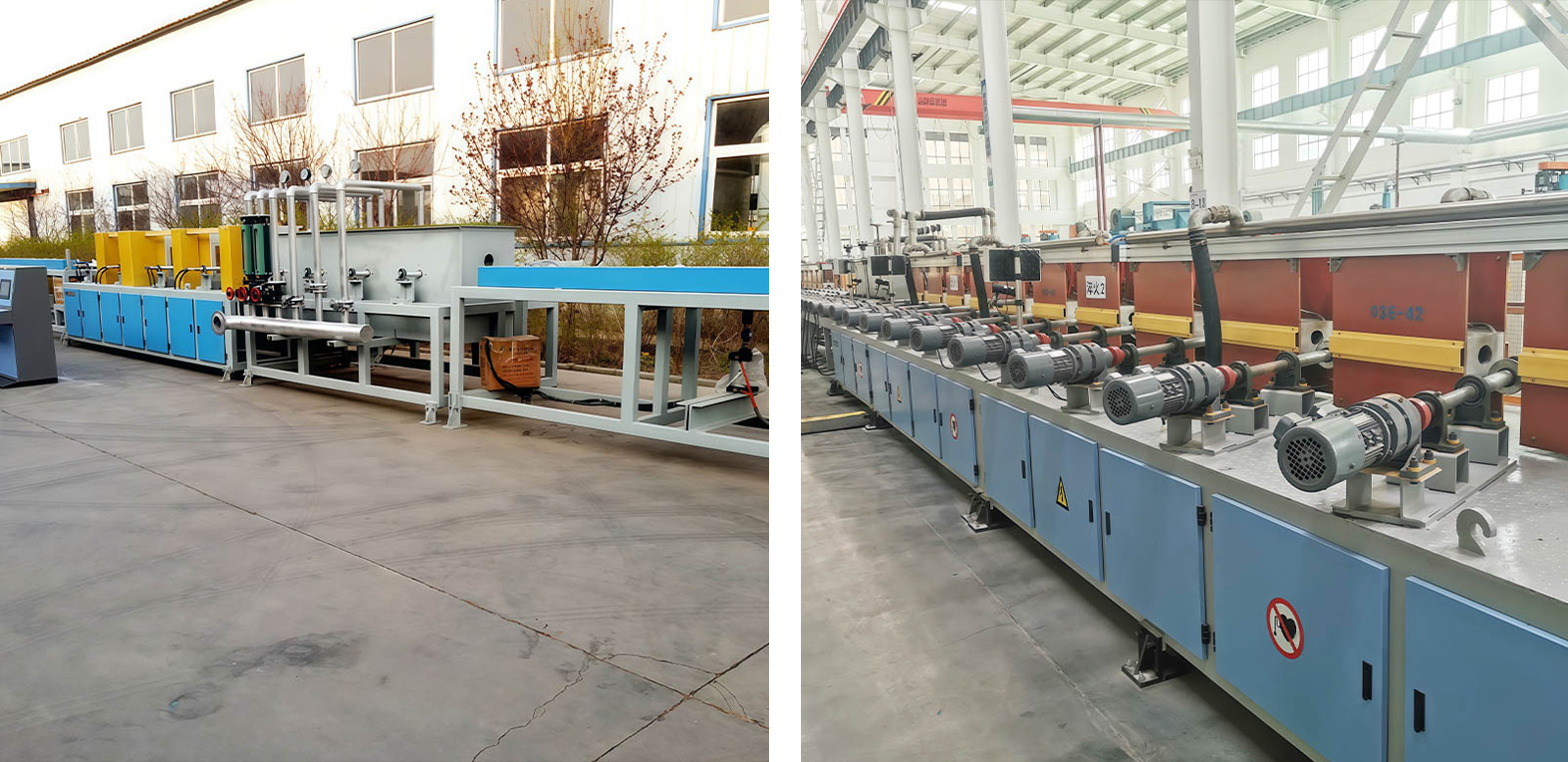

Induction Heating Line for Grinding Rod Quenching
Product Description
Yuantuo grinding rod quenching induction heating equipment is used for surface hardening treatment of materials such as carbon steel and low alloy steel. It widely serves industries such as machinery manufacturing, automotive parts, and steel smelting, providing customers with efficient and precise heat treatment solutions.
Applications
Yuantuo's grinding rod quenching induction heating equipment is suitable for surface quenching treatment of various grinding rods, mainly including:
● Carbon steel and alloy steel: Surface hardening of grinding rods and shaft parts commonly used in industries such as automotive manufacturing and machining.
● Heat treatment: Suitable for hardening and strengthening treatment of grinding rods and steel pipes, improving the wear resistance and strength of products.
Product Feature
Working Principle and Heating Process
Grinding Rod Feeding and Heating: The grinding rods are automatically fed into the induction heating furnace via a conveyor system, where induction heating rapidly raises the surface temperature of the rods.
Quenching Treatment: After heating, the grinding rods are quickly cooled by a water spray device, forming a high-hardness hardened layer on the surface while the core retains relative toughness, improving overall mechanical properties.
Temperature Control and Monitoring: The temperature of each grinding rod is monitored in real time by an infrared thermometer, and the power and temperature during the induction heating process are precisely adjusted by a PLC control system.
Discharging and Cooling: After quenching, the grinding rods are further cooled by a cooling system and then conveyed to the subsequent processing or packaging area.
Equipment Configuration
Medium Frequency Power Supply: A high-efficiency medium frequency power supply system is used to provide stable and uniform heating power. The power supply is configured according to customer needs and production process requirements to ensure high-efficiency output.
Induction Heating Furnace: The induction heating furnace is customized according to the specifications of the grinding rods. The furnace design ensures uniform heating, reduces heat loss, and improves work efficiency.
Capacitor cabinet and transformer: Equipped with high-efficiency capacitor cabinets and transformers to ensure efficient use of electrical energy and reduce energy consumption.
Infrared temperature measurement system: Real-time monitoring of heating temperature throughout the process ensures precise temperature control during quenching.
PLC control system: Siemens PLC control system, combined with a 10-inch color touchscreen, displays production data in real time and automatically adjusts various parameters during heating and cooling.
